Circular Diffuser with Damper — 6-Inch Duct Outlet for Even Airflow Control
Best for: Growers wanting to eliminate hot spots and distribute treated air evenly across their canopy without concentrated air blasts
Our thoughts
If you're running ducting without a proper outlet point, you're basically shooting air at one spot and hoping for the best. This changes that. The damper lets you dial in exactly how much air goes where, which solves most of the hot spot and microclimate headaches we see in grow rooms. Simple kit, does what it should, and works brilliantly with climate control systems like Opticlimate.

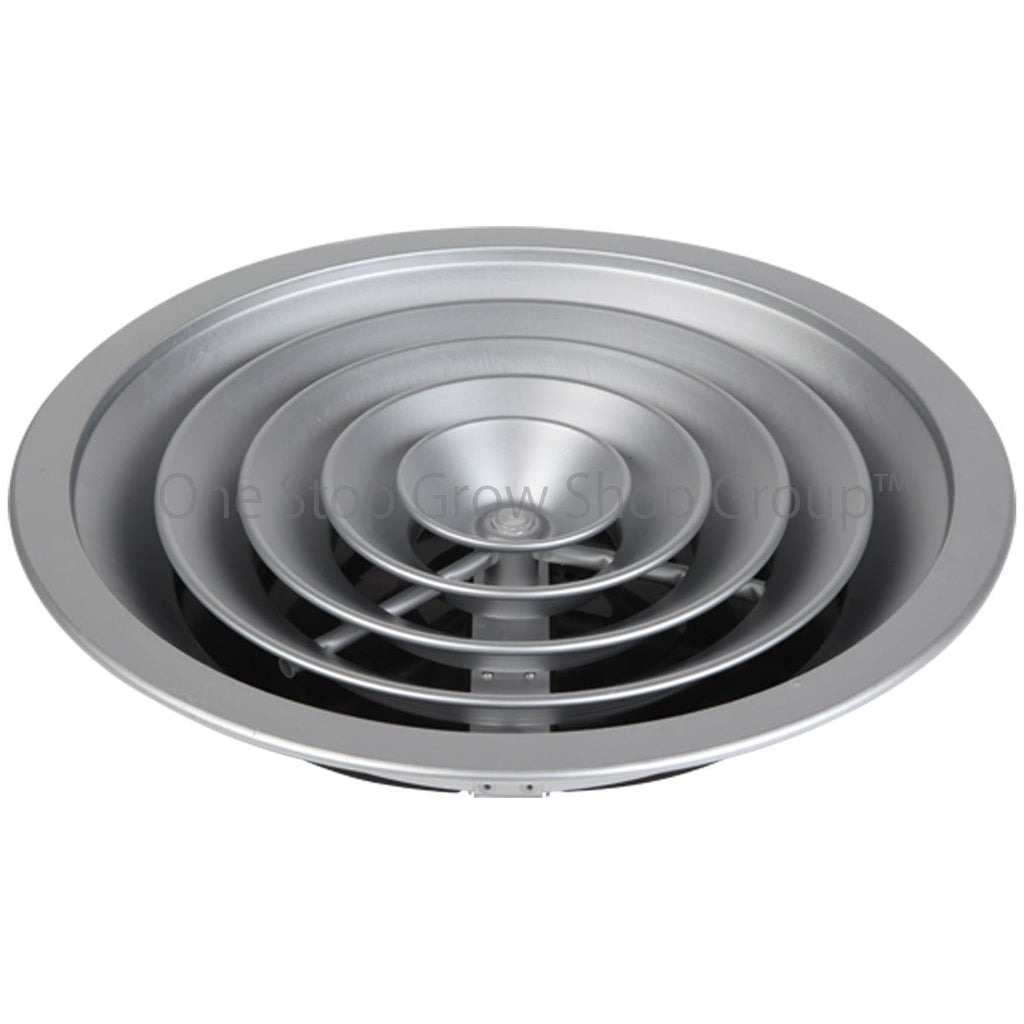

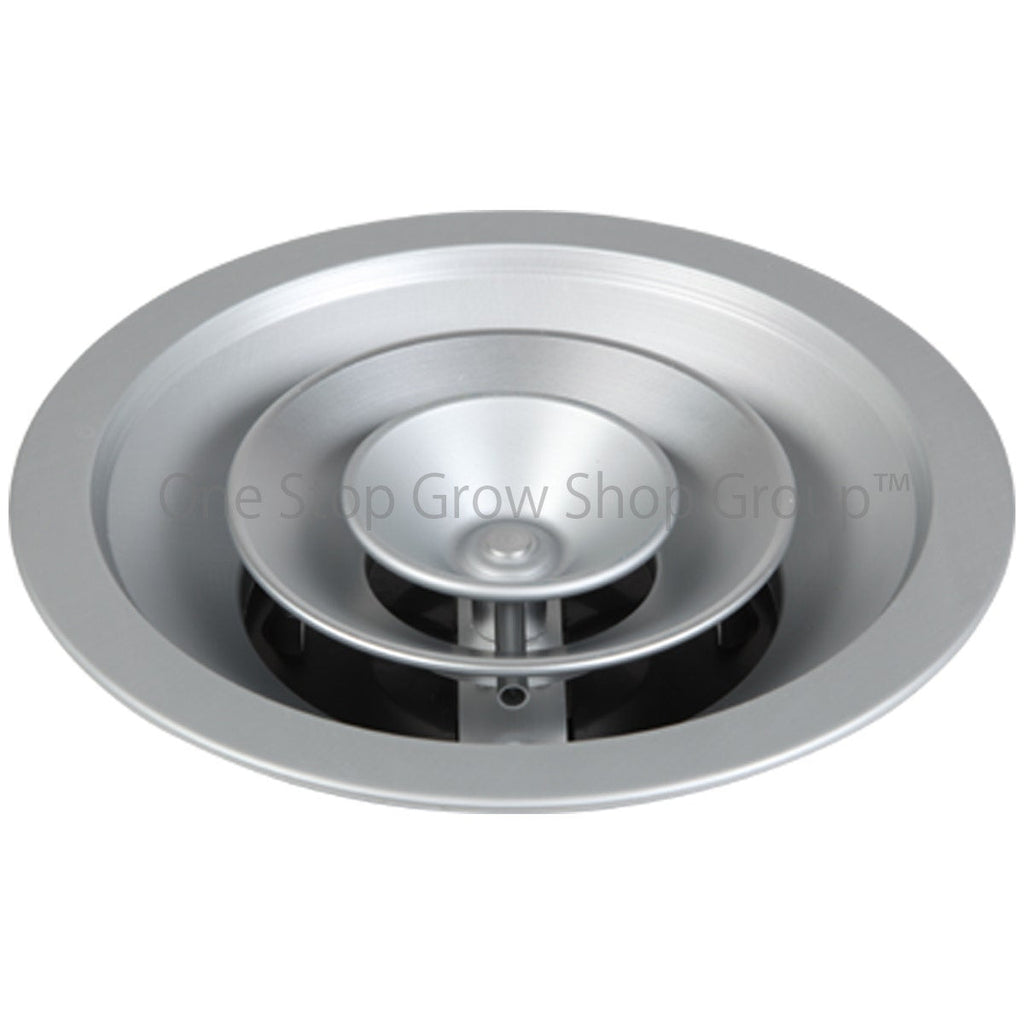

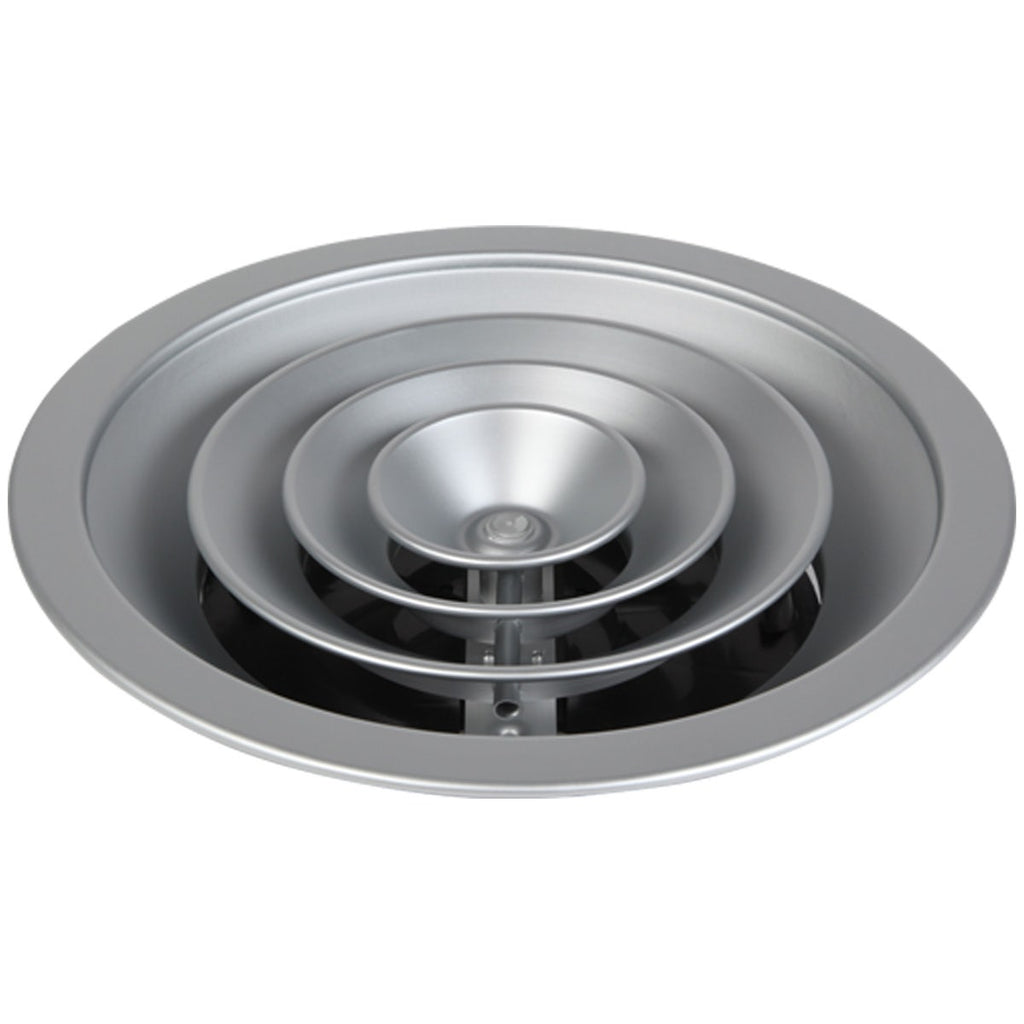

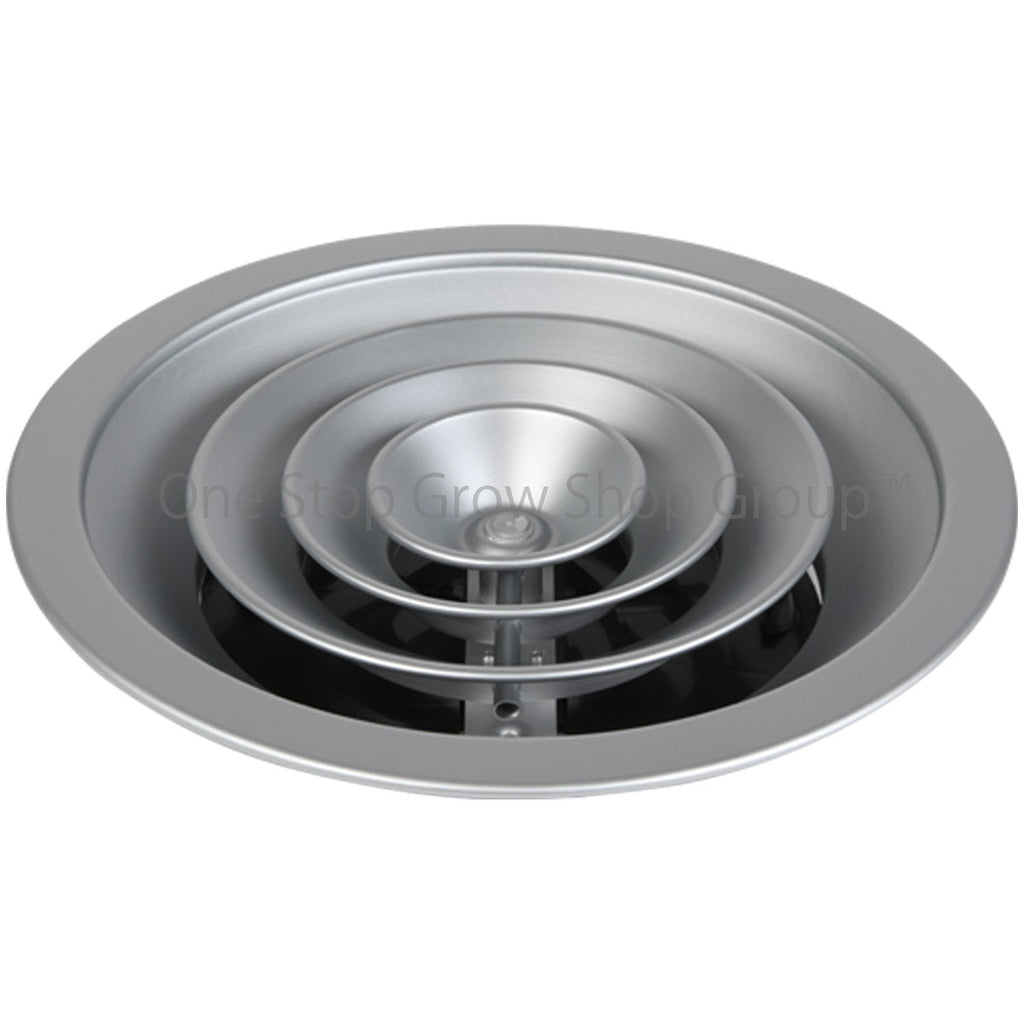

A circular diffuser with integrated damper is the business end of your ducting system. Instead of venting treated air out in a single stream, it spreads airflow evenly across 360 degrees in a radial pattern, creating consistent conditions throughout your space. The built-in damper lets you regulate volume on the fly — no need to fiddle with your fan speed or add extra components.
This is particularly useful if you're running a climate control system like Opticlimate or any setup where you've invested in conditioning your air. A proper diffuser makes sure that investment actually reaches your plants evenly, rather than creating dead zones and hot spots.
How it compares
Circular diffusers sit at the sweet spot between cost and function in airflow distribution.
-
vs. open duct ends: Vastly better air spread; eliminates concentrated blast zones
-
vs. oscillating fans: Even coverage without dead zones or wind burn; integrates with ducting; no moving parts to fail
-
vs. square directional diffusers: Perfect fit for standard 6-inch UK ducting; simpler installation; lower cost; 360-degree coverage
-
vs. specialist grow diffusers: Same function at a fraction of the price; proven HVAC-grade design
Usage guidance
Installation
Fits standard 6-inch (150mm) ducting. Couple it to your duct run with a coupling and aluminium tape. Mount it at ceiling or upper-wall level to direct air downward across the canopy. No special tools needed.
Damper adjustment
The butterfly damper is operated via a simple handle accessible from the front face of the diffuser. Turn it from fully open (maximum airflow) to closed (minimum airflow). In climate-controlled rooms, you'll typically run it mostly open; in ventilation-only setups, adjust it to balance flow if you're running multiple diffusers.
Airflow control
The damper has a foam gasket seal that tightens when closed, giving you a virtually airtight shut-off if needed. This means you can balance airflow across different zones without losing pressure elsewhere in your duct run.
Typical setups
Works seamlessly with inline extraction fans, Opticlimate climate control systems, and any ducting-based ventilation. Best suited to spaces up to 4 metres high where the radial spread pattern hits the sweet spot for even distribution.
Technical specifications
-
Duct size: 6-inch (150mm diameter neck) — standard UK grow room ducting
-
Frame material: High-quality aluminium, white finish (RAL 9010)
-
Damper type: Butterfly damper with black powder-coated steel blade and foam gasket seal
-
Air pattern: 360-degree radial distribution via concentric inner core design
-
Damper operation: Smooth handle adjustment from fully open to fully closed; accessible from diffuser face with screwdriver or simple hook tool
-
Installation method: Couples to 6-inch ductwork with standard coupling and aluminium tape
-
Maximum room height: Up to 4 metres (optimal diffusion range)
-
Temperature differential rating: Suitable for up to 12°C temperature differential across the space
-
Maintenance: Damper can be accessed and adjusted even when installed; removable front cover for easy cleaning
Who this is for
- Growers stepping up from oscillating fans to proper ducted ventilation
- Anyone running Opticlimate or similar climate control systems and wanting to distribute conditioned air evenly
- Setups experiencing hot spots, dead zones, or uneven humidity — diffusers solve that
- Multi-zone grows where you need to balance airflow across different areas
- Growers who want airflow control without the cost of specialist grow equipment
Particularly suited to rooms up to 4 metres high where you want consistent, gentle air coverage rather than concentrated flow.
Our take
This is a no-nonsense piece of kit that handles a job standard ducting can't do on its own. You're getting HVAC-grade engineering at a price that actually makes sense, which means your climate control system (or ventilation setup) actually works properly instead of creating problems.
If you're experiencing uneven conditions, hot spots, or just want your air to spread evenly instead of blasting one spot, it's worth picking up. Does exactly what it should, day in, day out. Good time to buy while clearance stock lasts.
