13mm Barbed Fittings — Tool-Free Irrigation Connectors for Custom System Building
Best for: Growers building or modifying hydroponic and drip irrigation systems without tools, glue, or permanent connections
Our thoughts
If you're piecing together a custom irrigation setup, barbed fittings are the no-nonsense way to do it. Push them on, clamp them down, and you've got a watertight joint that won't kink your pipe or trap air. Double-barbed acetal design means they hold fast, even in decent pressure systems. One we recommend constantly for anyone building beyond the stock setup.
13mm barbed fittings are push-fit irrigation connectors designed to join, redirect, and customise 13mm LDPE pipework without requiring tools, glue, or permanent modifications. Made from UV-stabilised acetal plastic with a double-barbed design, they create secure, leak-proof connections that handle low to medium pressure systems reliably. Whether you're adding extra pots to an existing layout, splitting flow to multiple zones, or building a hydroponic system from scratch, these fittings give you the flexibility to adapt your irrigation exactly how you need it.
How it compares
Barbed fittings sit at the practical end of the connector spectrum.
-
vs Compression fittings: Barbed are cheaper and faster to install; compression are permanent and more rigid
-
vs Perma-Loc locking systems: Barbed are tool-free and reusable until you seat them properly; Perma-Loc offers a locking nut for on-demand disconnect
-
vs Drip-Lock fittings: Barbed are simpler; Drip-Lock include release collars for easier removal
For small to medium systems and DIY builds, barbed fittings are the sweet spot between cost and capability. You get secure connections at a price that doesn't eat into your budget for nutrients or lighting.
Usage guidance
Installation basics
Push the 13mm tubing over the barbed fitting until fully seated. For easier installation with cold tubing, warm it in hot water for 10–30 seconds first to soften the material temporarily, then slide it on. The pipe sits flat against the barbs, creating an immediate friction fit.
Sealing the joint
When using 13mm LDPE pipe, fit a ratchet clamp at each connection point to lock the joint watertight. The distance between the barbs gives you a flat base for the clamp to grip. This combination of barbed anchor and clamp pressure is what keeps everything airtight.
Pressure range and performance
These fittings handle optimal pressures between 0.5 and 3 bar, making them ideal for micro-irrigation, drip systems, and hydroponic setups. The double-barbed acetal design produces sharper anchoring than standard connectors, meaning better retention even under pressure variation.
System customisation

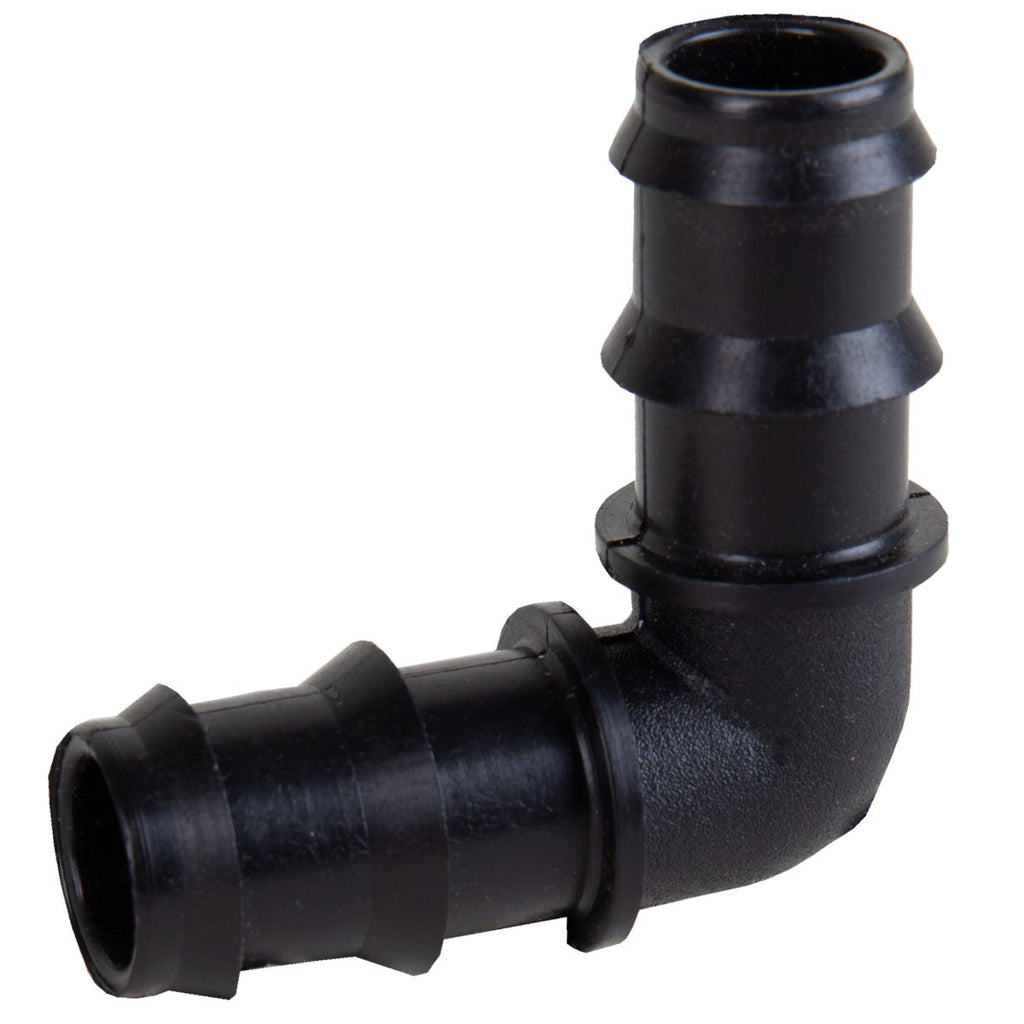

Use elbows to redirect flow without kinking pipe. Use tees to split one line into two. Use straight connectors to extend runs. End stops cap off branches. Non-return valves prevent backflow. Inline filters clean as you water. Each fitting type lets you adapt your system without rewiring the whole thing.
Air lock prevention
One of the key strengths of barbed fittings is that the sealed design eliminates air pockets forming in the line, which means consistent nutrient delivery to all zones. Airlocks kill uniformity fast; these fittings stop that happening.
Technical specifications
- Tubing compatibility: 13mm internal diameter (1/2" ID), typically 16–17mm external diameter LDPE pipe
- Material: UV-stabilised acetal plastic (copolymer)
- Barb design: Double-barbed for increased retention and pressure hold
- Pressure rating: 0.5–3 bar optimal operating range
- Connection type: Push-fit (no tools required)
- Seal method: Friction fit + ratchet clamp recommended for LDPE applications
- Installation: Warm tubing in hot water 10–30 seconds for easier insertion

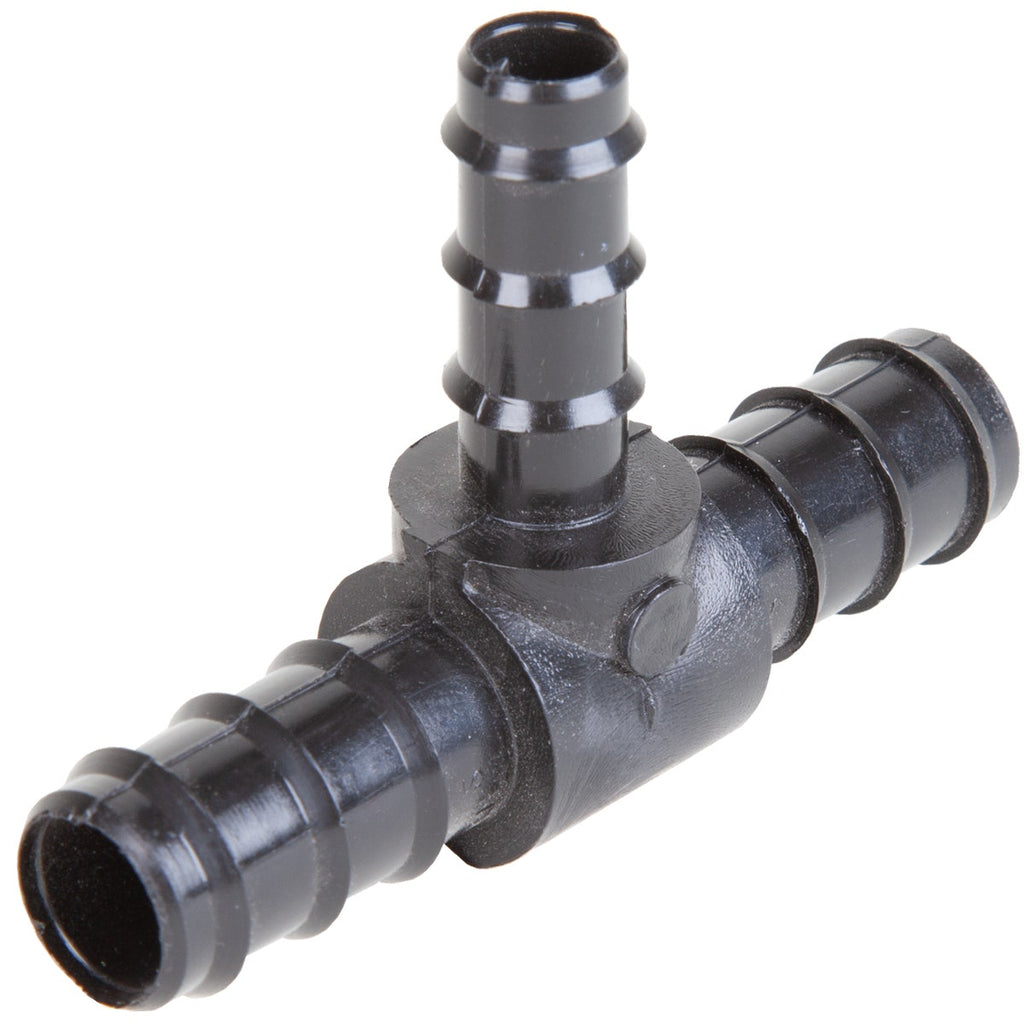

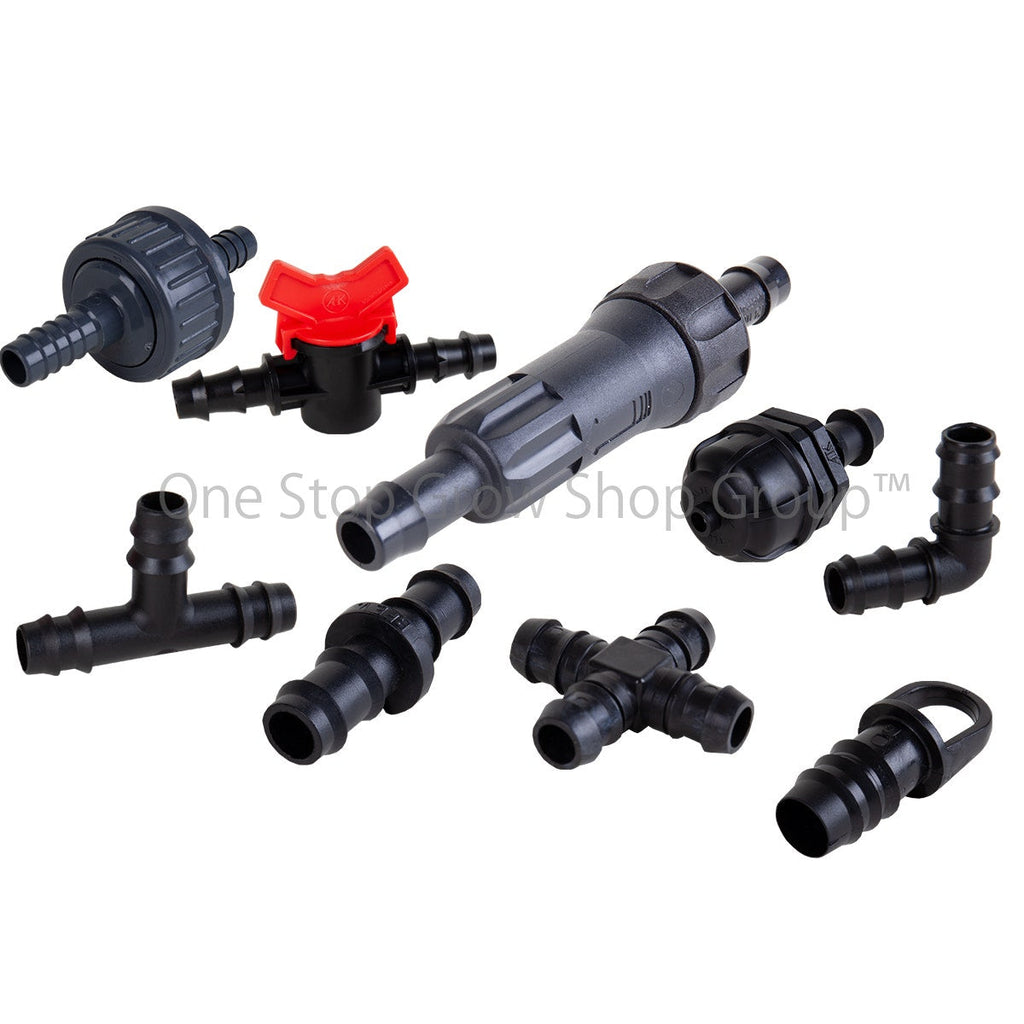

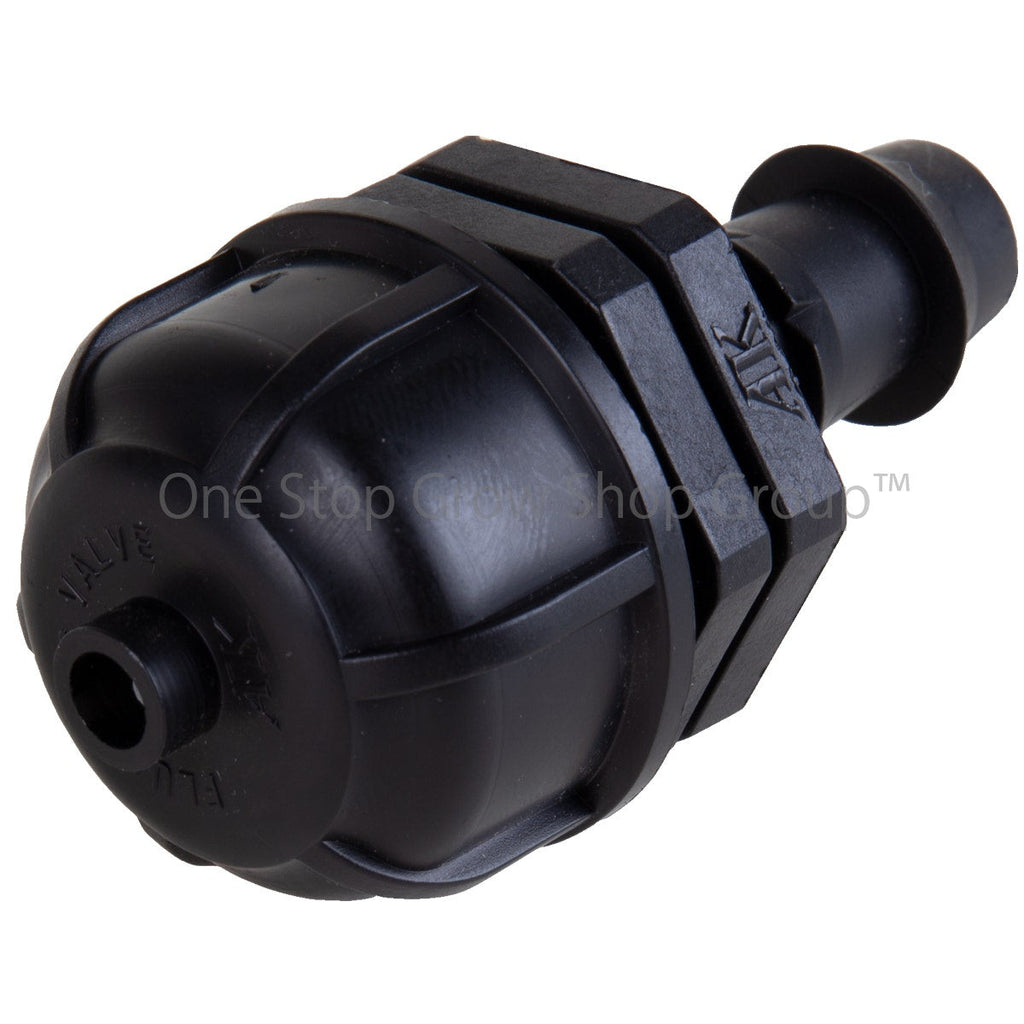

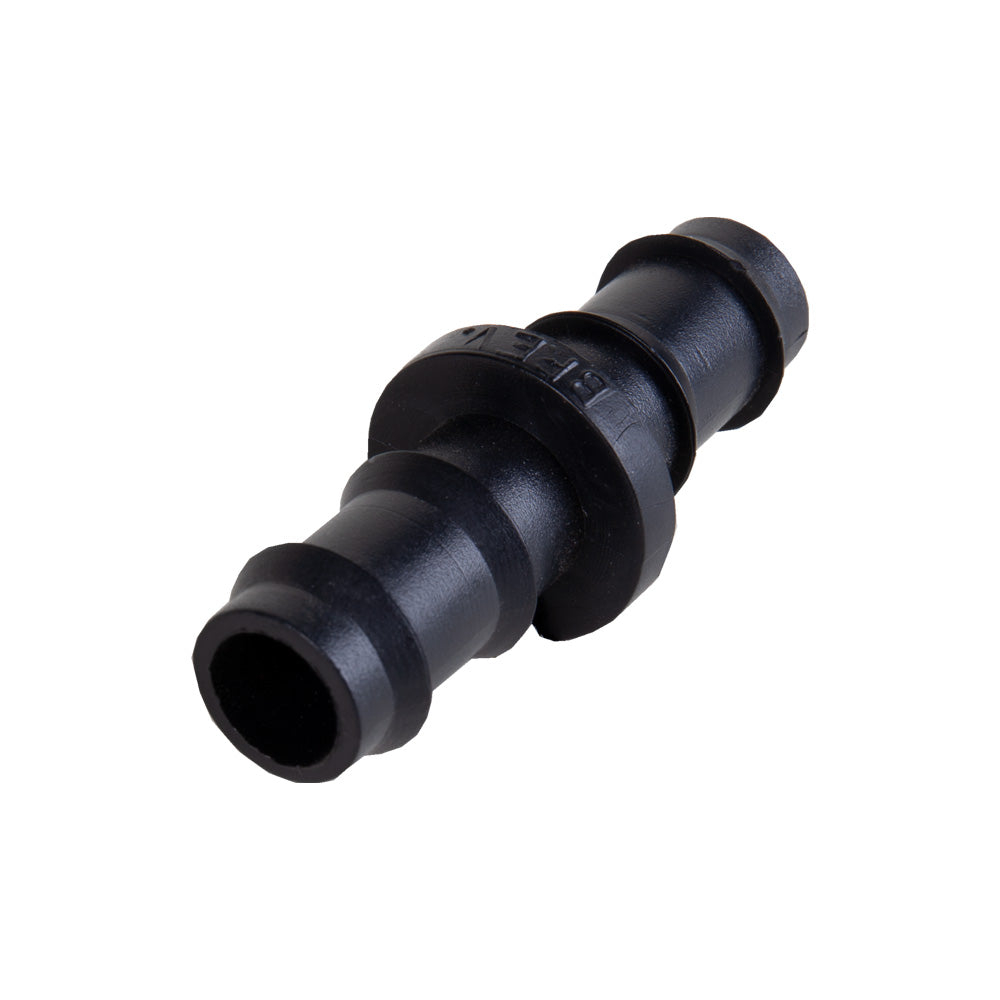

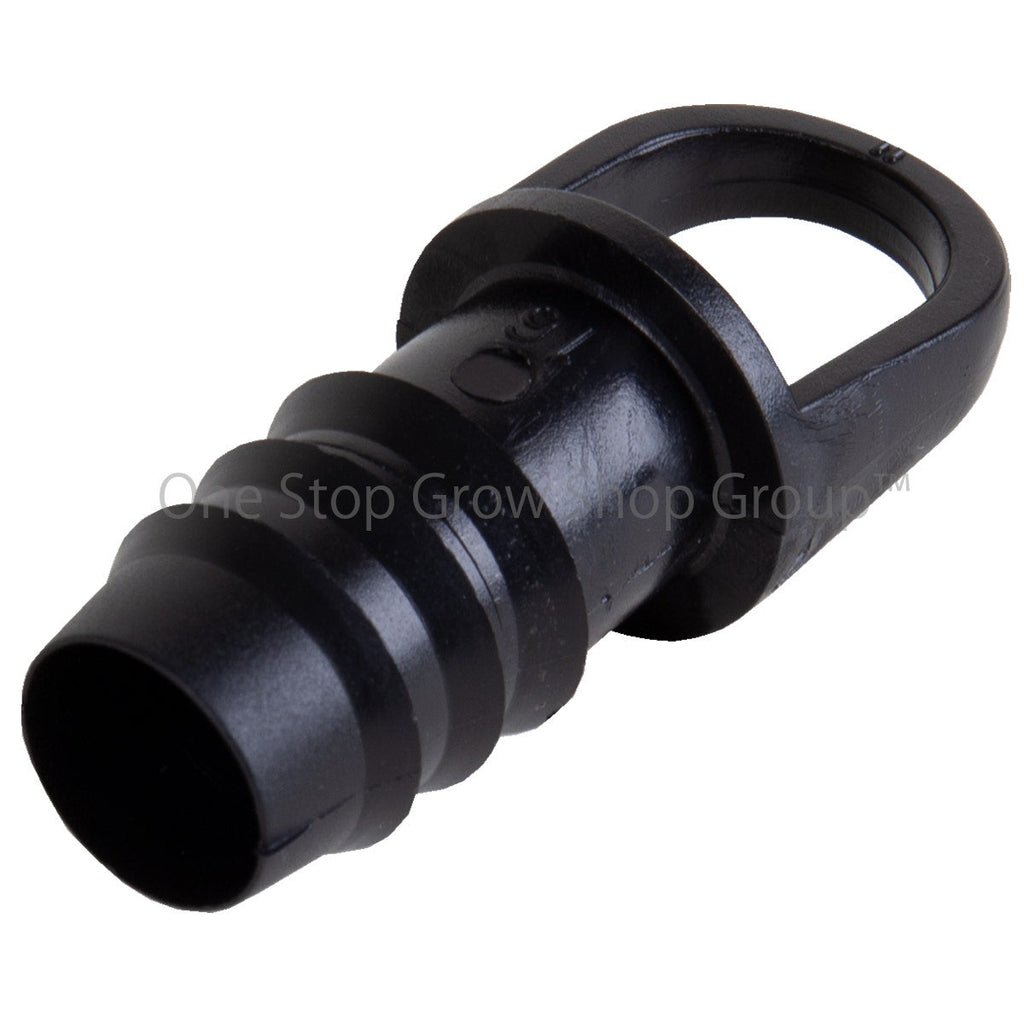

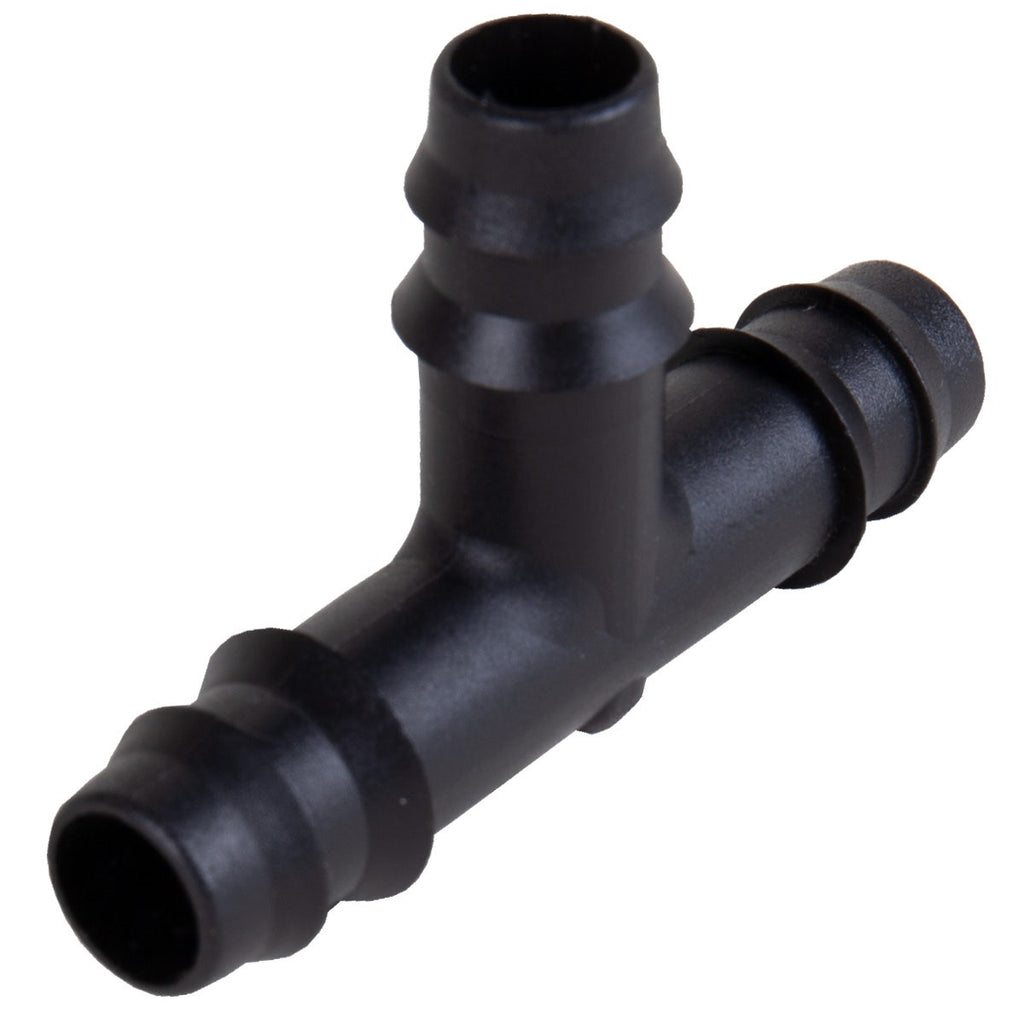

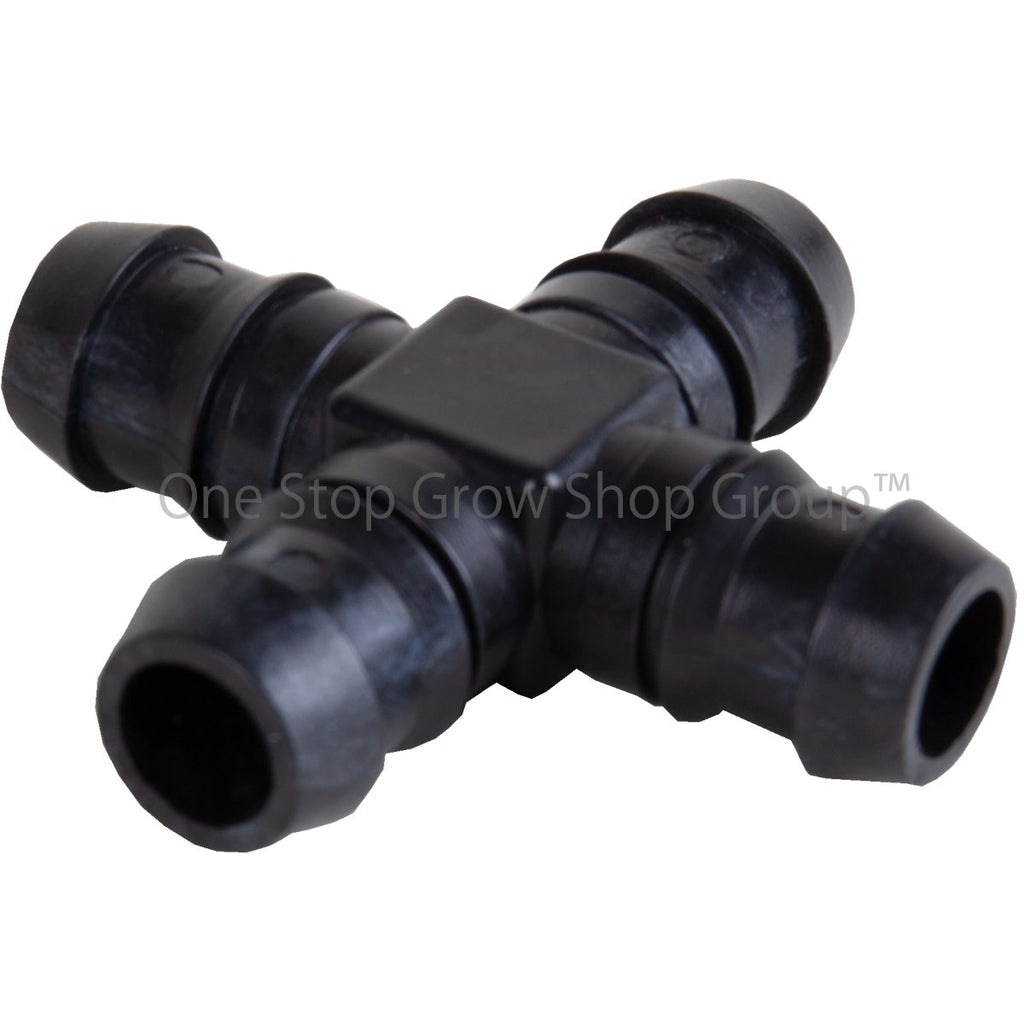

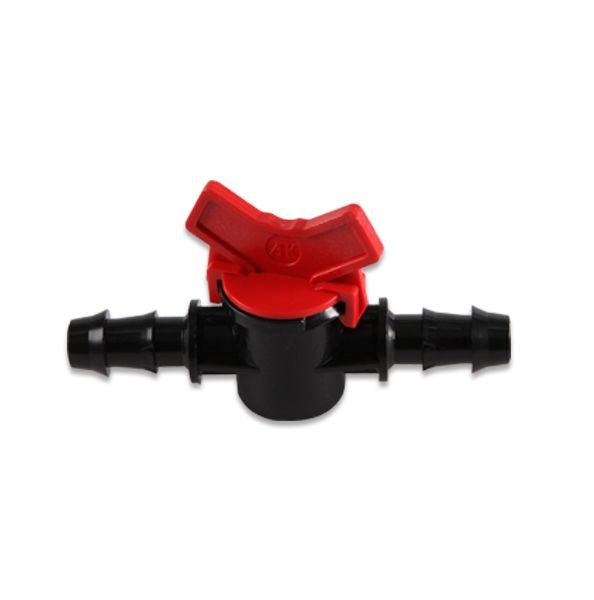

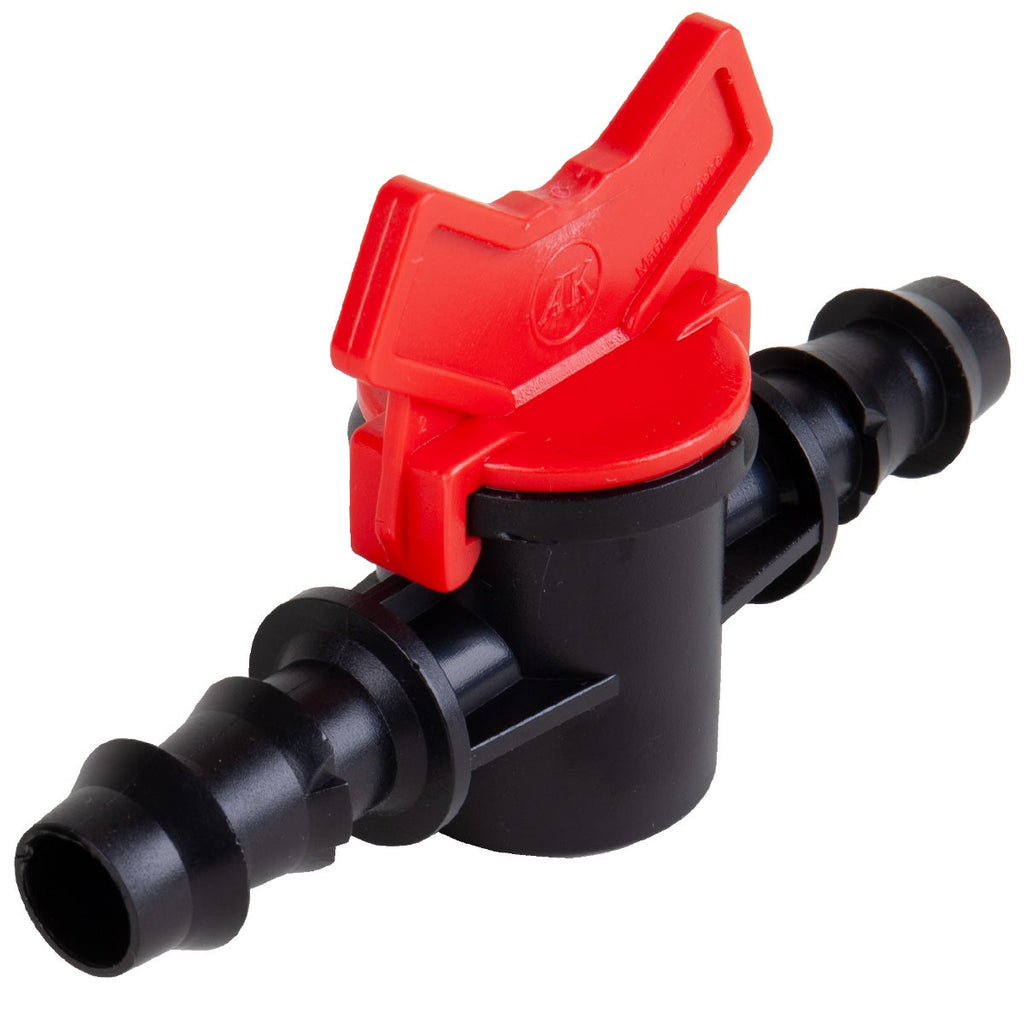

- Available connector types: Elbow, tee, straight, end stop, cross, non-return valve, anti-siphon valve, inline filter, flow control tap, reducers (13mm to 9mm, 13mm to 4mm)
Who this is for
- First-time growers building custom drip or hydroponic systems without professional tools
- Experienced growers scaling up or modifying existing setups efficiently
- Anyone adding extra pots or zones to an already-running system
- DIY irrigation projects where cost-per-fitting matters and flexibility is key
- Growers who want to prevent air locks and kinks in their delivery lines
- Budget-conscious operators running multiple zones or pots from one water source
Particularly suited to systems where simplicity, adaptability, and cost control matter more than permanent, sealed installation.
Our take
Barbed fittings are the practical choice for anyone building irrigation from components rather than buying all-in-one kits. They're cheap, they're fast to fit, they handle pressure properly, and they let you modify your system without starting from scratch. The double-barbed acetal design holds properly — no cheap single-barb surprises halfway through the season.
If you're customising a hydroponic setup, splitting your main line to multiple zones, or just replacing a damaged fitting without buying a whole new kit, these are worth picking up. Good time to stock up while clearance pricing holds. Does the job reliably, day in and day out.
